3.2 Manager Programming

3.2.1 Programming Information

The manager can program the following item.

•	Other Extensions Control

Available Extension
The extension assigned as a manager

Required Telephone
A Panasonic Proprietary Telephone with display (over 2 lines)
(e.g., KX-T7636)

Manager Password
To enter programming mode, the manager password (max. 10 digits) is required. (Default: 1234)

Conditions
The programming extension must be idle, on-hook and holding no calls.

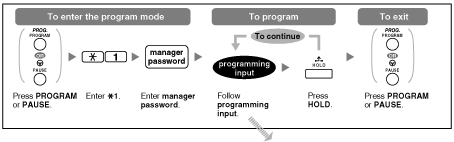

3.2.2 Manager Programming

Changing the Settings and Extension Control

Item

Programming Input

Changing the manager password.

+ Password (max. 10 digits) +

Locking/unlocking other extensions.
(Remote Extension Lock)

+ Extension no. +

(to lock)/

(to unlock) +

Clearing the PIN and PIN lock for extensions

+ Extension no. +

Clearing the PIN and PIN lock for verified codes.

+ Verified code +

Setting the verified code PIN.

+ Verified code + PIN (max. 10 digits) +

•

WARNING
When a third party discovers the password (verified code PIN) of the PBX, there will be a risk that they will make fraudulent phone calls using the telephone line, and the cost will be charged to your own account. In order to avoid this problem, we strongly recommend the following points:
a) Carefully maintain the secrecy of the PIN.
b) Specify a complicated PIN as long and random as you can make it.
c) Change the PIN frequently.
